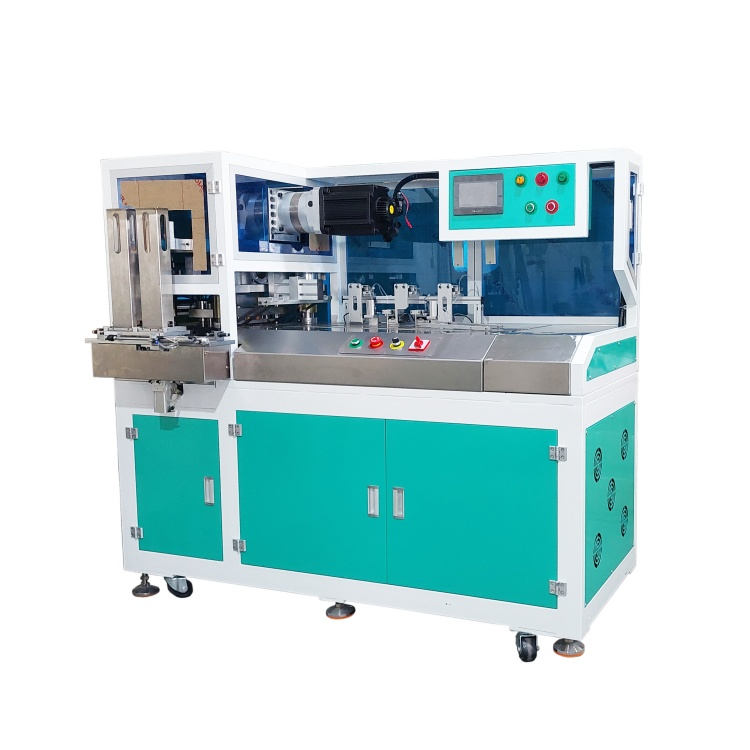

Discover the Power of CMS Collating Machines for Seamless Assembly

Collating Machine Evolution: From Manual to CMS Automation

Historical Limitations in Assembly Processes

Early collating relied on manual sorting systems prone to 18% error rates (Industrial Automation Journal 2003). Workers aligned printed sheets or fragile components using mechanical grippers that often caused damage. Though 1980s pneumatic systems improved speed, they required constant calibration, consuming 23% of production time in setup adjustments.

Technological Milestones in CMS Collating Design

Computerized Manufacturing Systems (CMS) introduced critical innovations:

1. Servo-driven sheet feeders (2012) with 0.1mm alignment precision
2. Multi-spectral sensors for material thickness detection
3. Self-adjusting registration systems reducing changeover times by 40%

Industry trials showed these advancements enabled handling 87+ material types automatically.

Quantifying Productivity Gains: Industry Adoption Rates

CMS adoption surged from 12% to 76% in carton manufacturing (2010-2022), cutting labor costs by 57% per 10k units. Early adopters like envelope producers achieved 98.2% first-pass yields versus 74.5% manually. A 2023 ROI analysis found CMS pays for itself in 14 months via throughput increases from 60 to 350 cycles/minute.

Core Mechanisms Powering CMS Collating Machine Efficiency

High-Speed Precision Feeding Systems Explained

Modern CMS machines exceed 1,200 PPM using dual-stage feeders: servo-driven primary alignment and pneumatic secondary guidance. This design reduces misfeeds by 92% versus vibratory systems (Packaging Tech Review 2023). Precision encoders maintain ±0.2mm accuracy, critical for electronics and medical devices.

Integrated Sensor Technology for Error-Free Assembly

Multi-spectral inspection verifies components at 800 fps with 99.98% accuracy for sub-1mm parts. Failed assemblies trigger immediate rejection, keeping defect rates below 0.15%. Automotive adopters reduced recall costs by $1.2M annually through this closed-loop system (Assembly Automation Journal 2024).

Case Study: Automotive Parts Manufacturer's 32% Throughput Increase

A tier-1 EV battery supplier resolved sequencing bottlenecks with CMS:

Magnetic tooling enabled 14 battery variants simultaneously, preventing $740k in warranty claims via early defect detection.

Industry-Specific Applications of Collating Machines

Pharmaceutical Packaging: Tamper-Evident Sealing Solutions

Blister pack machines now detect 0.2mm seal deviations (78% error reduction) while maintaining 450+ units/minute—critical for CFR Title 21 compliance (PharmaPack 2023).

Print Media Production: Signature Collating Precision

Systems handle 50-300gsm paper weights at 12,000 pages/hour with 99.9% accuracy, cutting waste by 23% versus manual methods.

Electronics Assembly: Component Sequencing Advantages

Micro-feeder arrays position SMDs within ±5µm, preventing mismatches in PCB kits and enabling 25% faster line clearance (ElectroFab 2024).

CMS Collating Machine ROI: Cost-Benefit Analysis

Labor Reduction Metrics in Industrial Settings

A 2024 study of 47 plants showed CMS cuts labor costs by 62% via automation:

• $18,400/month saved (8 operators → 3 technicians)
• 99.4% throughput accuracy per ISO 9283 metrics

Maintenance Cost Paradox: Higher Investment vs. Lower Downtime

Diagnostics prevent 89% of failures preemptively, creating a 4.1-year breakeven point before CMS delivers 17-23% lower annual costs (ASTM F2924-23).

Smart Collating Machine Integration Tactics

IoT-enabled Workflow Synchronization

Networked sensors auto-adjust feeders for ±0.3mm misalignments. Vibration analysis (500 Hz) predicts motor failures 72+ hours early, cutting maintenance costs by 19%.

API Connectivity with Production Systems

ERP/MES integration via RESTful APIs improved one manufacturer's inventory accuracy to 94%. OPC-UA ensures compatibility with 85% of IoT controllers.

Future Collating Machine Technology Horizons

AI in Predictive Jamming Prevention

Neural networks predict jams 8–12 cycles early, reducing downtime by 41%—critical for hybrid materials like pharmaceutical foils.

Sustainable Materials Handling

Energy-recovery actuators reclaim 23% of motion power, while UV-cured adhesives eliminate solvent emissions. Closed-loop systems cut polymer waste by 18%.

Modular Design for Scalability

Hot-swappable cassettes reconfigure pharma lines in <19 minutes, reducing retooling costs by 62%.

Innovation Drivers:

• AI trained on 23M+ jam incidents
• ISO 14067-certified handling
• Plug-and-play legacy compatibility

Industrial Automation Insights project 59% of systems will adopt sustainability tech by 2027 due to EU regulations.

FAQ

What is a CMS collating machine?

A CMS collating machine, or Computerized Manufacturing System, is an automated mechanism used for assembling or sorting materials with precision and efficiency, using advanced technologies like servo-driven feeders and multi-spectral sensors.

How do CMS machines improve productivity?

CMS machines improve productivity by increasing cycle rates, reducing setup and changeover times, and minimizing errors and wastage through integrated sensor technology and precision mechanisms.

What industries benefit from CMS collating machines?

Industries such as carton manufacturing, pharmaceuticals, print media, electronics, and automotive manufacturing benefit from CMS collating machines, owing to their accuracy, speed, and cost-effectiveness.

How does CMS technology affect labor costs?

CMS technology significantly reduces labor costs by automating processes that were traditionally manual, often requiring fewer operators while maintaining high throughput and accuracy.

What future technologies are being integrated into collating machines?

Future technologies include AI-powered predictive maintenance to prevent jams, sustainable materials handling solutions, and modular designs that allow for scalable and versatile production lines.
