Playing Cards Wrapping Machine,WT-007CWM

Machine Introduction:

WT-007CWM Playing Cards Wrapping Machine is widely used in three-dimensional wrapping for pharmaceutical, food, health care products, cosmetics, audio-visual products, industry square appearance decoration items in a box, etc. Such as PCS, chewing gum, health care products, tea, sugar, condoms, rubber, mosquito-repellent incense, tape, VCD discs (CD), playing cards, transparent soap, square type battery, floppy disk, etc. The machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles.

Feature

• Compact structure and reasonable, stable performance is advanced, easy operation and maintenance;
• Adopt multi-function digital frequency inverter, step-less variable speed;
• Only 40 minutes mould replacement is convenient;
• With automatic feeder, automatic counting, etc;
• The transmission part is equipped with all kinds of protection devices and fault prompt;
• Commissioning film feeding clutch, no waste of packing materials.

Working Principle

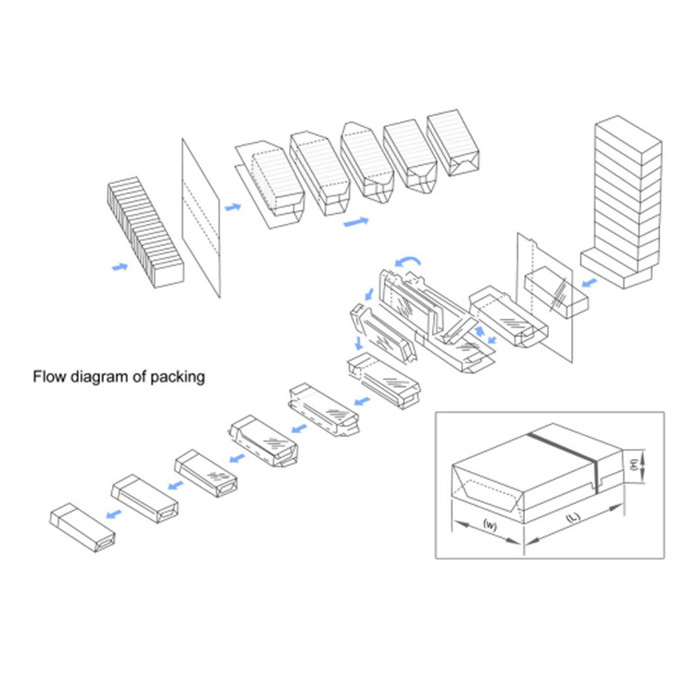

The BOPP film is driven by the film roll and feeds the film in turn. When the film is sent to the cutter, the cutter cuts the film. When the push plate pushes the package forward, the inert film is pulled down and attached to the package, and the push plate continues to push the package and the film.

When pushing the lower refractive plate, the push plate is withdrawn. When the second package touches the first package, the first package is advanced by the thrust of the push plate, and the corner is started. Then, relying on the thrust of the push plate, the package naturally produces a chamfer, and the left and right seals are hot, the upper shape is formed, and the lower shape is hot-sealed to complete the entire packaging action

Technical Parameters
