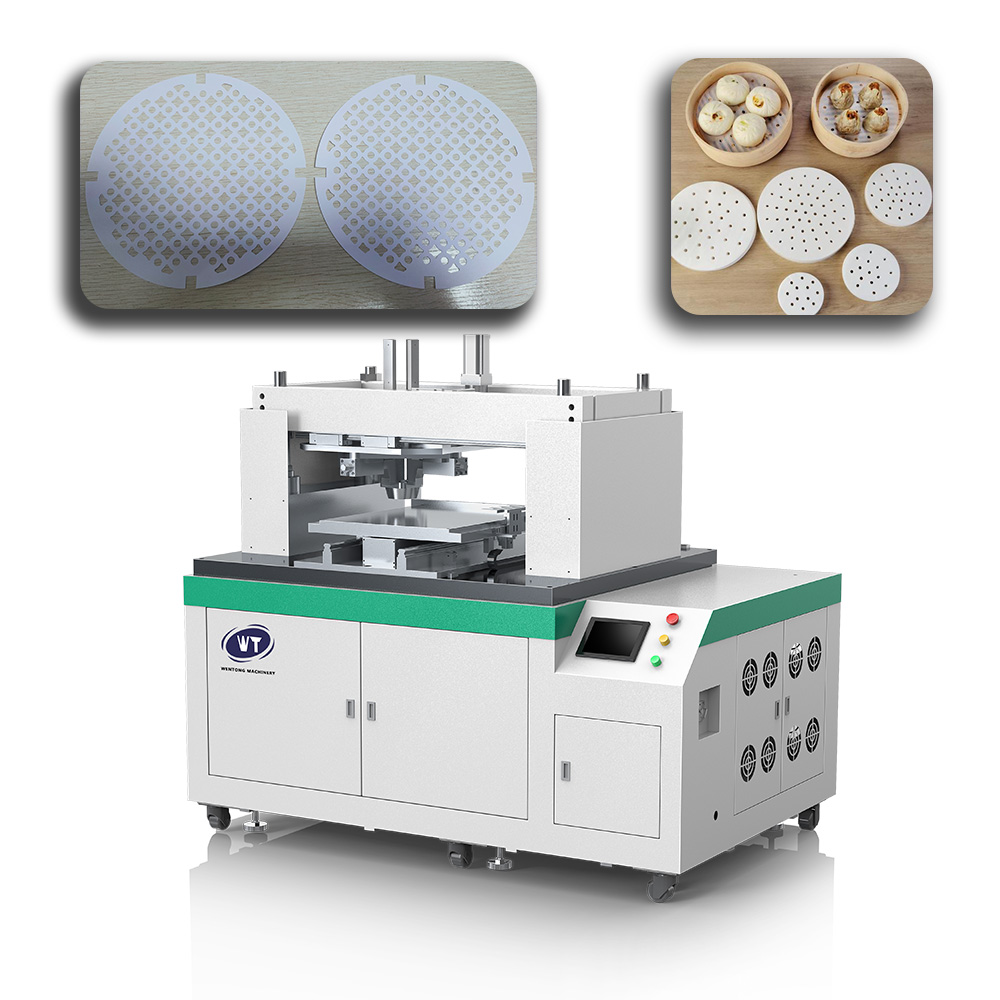

Identify the Root Cause of Poor Cutting Quality
Distinguish random vs. consistent cut failures to isolate system vs. consumable issues
The first step for operators is looking at where problems tend to show up during production runs. When we see random cutting issues like uneven depths or incomplete cuts happening all over the place, this usually means there's something wrong with the machine itself. Pressure variations, tool alignment problems, or issues with the servo motors are common culprits behind these kinds of irregularities. Things get different when failures keep showing up in exactly the same spots though. That pattern typically points to worn out parts or materials breaking down over time. Dies getting dull, blades losing their edge, or substrate contamination can all cause these repeated problems. Keep tabs on how often these defects occur by watching SPC charts closely. For system errors, recalibrating drives and sensors tends to fix things up. But when defects follow a pattern, it's time to check those dies again or consider swapping out entire batches of material.
Evaluate die condition: blade angle, wear, coating integrity, and cut type (crush vs. shear)
Blades should be checked under about 10 times magnification to spot those tiny chips and flaked coatings that can sneak past regular inspections. When it comes to measuring blade angles, precision matters a lot. If there's more than half a degree off either way, cutting performance drops dramatically - sometimes as much as 40%. Different materials need different blade shapes. For crush cutting foam products, flat blades work best, whereas film cutting requires blades with angled edges for proper shearing action. Keep track of how blades wear down over time because dull blades actually make machines work harder. In busy production environments, cutting force typically goes up between 15 and 30 percent each week as blades get worn. To check if cuts are consistent across the board, try testing with those super thin shim stocks measured in microns. Any die showing more than 0.1 millimeter of edge wear or coatings cracked over 5% of the active area needs replacing before quality issues start appearing in finished products.
Assess label stock factors: liner caliper variation, adhesive reflow, and facestock delamination
Around 70% of cutting problems that aren't related to machinery itself come down to material inconsistencies. When checking liner thickness, it's important to measure at several different spots across the sheet. If there's a difference of 5% or more in thickness between measurements, this often leads to incomplete cuts that need fixing later on. Keep an eye on how adhesives behave too. Sometimes silicone migrates through layers or certain low-tack formulas create what we call "ghosting" when peeling off labels - those faint marks left behind after removal. With materials sensitive to heat, operators should watch their machine run times closely. Letting them run too long can push temperatures past 40 degrees Celsius (about 104 Fahrenheit), causing the adhesive to soften unexpectedly. Regular peel testing helps catch issues with facestock separation early. Any reading over 2 Newtons per centimeter suggests either moisture has been absorbed into the material or there are problems with the coating quality. And remember to let all materials sit for at least 24 hours in controlled conditions around 20 to 25 degrees Celsius with humidity levels between 40 and 60 percent prior to any processing work. This conditioning period really makes a difference in final product quality.
Optimize Press Settings for Consistent Die Cutting Performance
Calibrate die pressure and kiss cut depth using test strips and micrometer verification
Getting the right balance between die pressure and kiss cut depth makes all the difference when it comes to consistent cutting results. If there's not enough pressure, fibers stay intact and require going over them again and again, which wears down the die faster than we'd like. On the flip side, too much pressure can actually crush the facestock material and mess up the liner underneath. When working with kiss cuts meant to reach just the adhesive layer without cutting through the liner completely, staying within about 0.05 mm accuracy range helps avoid wasted materials. Most operators start by running several test cuts across different parts of the die using those special pressure indicator strips. Afterward, they check how deep the blade went into the material with laser measuring tools, then tweak the press settings bit by bit until everything looks good. Don't forget to do these checks at both hot and cold ends of the temperature spectrum either, since materials expand and contract differently depending on heat levels.
Stabilize web tension and verify stripping geometry alignment across speed ranges
When web tension varies more than 15% from what's specified, materials tend to drift off course during fast operations. This drifting leads to problems like die misalignment and eventually causes tearing in the substrate material. Check those tension rollers to see if they're properly aligned side to side with good old fashioned precision levels. Also important to double check how well the brake and dancer arms are calibrated using proper load cell equipment. Don't forget about stripping geometry either the angles and positions where waste gets removed need to stay spot on no matter how fast the press runs. Start testing at around 20% of top speed and slowly work up to full capacity while keeping an eye on how the material tracks along. If there's any sideways movement over 1.5 mm, that means something's out of whack and needs fixing through either recalibrating servos or adjusting rollers again. Getting both these aspects right helps keep die cutting machines running smoothly throughout production runs, which cuts down on wasted materials quite a bit many plants report reductions as high as 23% when everything works together properly.
Diagnose and Resolve Mechanical and Electrical Failures in Die Cutting Machines
System startup failure: troubleshoot power supply, safety interlocks, and PLC input signals
If a die cutting machine won't start at all, begin by checking whether the main power source is actually delivering enough voltage. Grab a multimeter and see if there's at least 220 volts coming through. Then look at those fuses and circuit breakers. A simple tripped breaker can really slow things down - we're talking about losing around 42 minutes just waiting for someone to reset it. Don't forget to examine the safety interlocks too. These are the little switches on doors and protective guards. About one third of all startup problems come from these sensors being out of alignment somehow. Finally, don't overlook the PLC inputs either. Programmers call them programmable logic controllers, but basically they're what tell the machine what to do next.
- Use diagnostic LEDs to confirm emergency stop circuits are closed
- Validate proximity sensors detect material presence
- Check servo drive error codes via HMI interface
Replace frayed cables immediately and recalibrate limit switches if signals deviate from machine specifications.
Abnormal noise or vibration: inspect bearings, drive belts, and roller parallelism
Grinding or rhythmic knocking sounds indicate imminent mechanical failure. For high-frequency vibrations (>15 Hz):
- Inspect bearings: Measure axial play with dial indicators. Replace if wear exceeds 0.003"
- Tension drive belts: Use sonic tension meters to achieve 120–140 Hz resonance frequency
- Verify roller parallelism: Place precision levels across anvils–adjust until deviation is <0.001"/ft
Thermal imaging reveals bearing hotspots (indicating lubrication failure), while vibration analysis detects misaligned drive trains. Addressing these early prevents catastrophic failures costing $18k on average.
Fix Software, Firmware, and Communication Issues on Modern Die Cutting Machines
In die cutting operations today, software hiccups, old firmware versions, and communication problems are some of those pesky issues that can really throw things off track but aren't impossible to fix. If patterns start going haywire or machines just stop responding, take a look at the software settings first. They should line up with what kind of materials we're working with. A lot of times folks forget to adjust parameters for different substrate thicknesses or set proper cut depths, which leads to all sorts of headaches later on. When dealing with firmware problems such as random shutdowns or screens that won't respond, checking for manufacturer updates makes sense. Most companies release patches that tackle serious bugs related to motor control systems or sensor calibrations. Communication breakdowns usually happen because there's a mismatch between protocols used by the machine and other connected equipment. Double check that everything speaks the same language (Ethernet/IP works well alongside Modbus TCP). Restarting controllers helps reset connections too. Keeping detailed records of software and firmware versions saves time when troubleshooting down the road. And don't forget to run regular tests every three months or so. Letting operators try out basic cutting tasks during these checks catches small configuration changes early before they become big production nightmares.
FAQ
What are common issues that affect cutting quality?
Common issues include pressure variations, tool alignment problems, and servo motor issues, as well as worn-out parts or material breakdowns.
How often should blades be inspected?
Blades should be inspected under magnification frequently, especially if there's a noticeable drop in cutting performance.
What is the role of adhesive in cutting problems?
Adhesive behavior can cause cutting issues, like ghosting or unexpected softening due to temperature changes.
How do I troubleshoot a die cutting machine's startup failure?
Check the power supply, fuses, circuit breakers, safety interlocks, and PLC input signals to identify startup problems.
